Individual reports

An individual report is an HTML page for one reconstructed subject: Talairach registration, aparc+aseg screenshots, and surface views (pial, inflated, white matter). The usual entry point is FreeSurfer.gen_batch_reports().

FSL flirt is required for the Talairach overlay. FreeSurfer must be initialized for mri_convert and the subject tree. See Prerequisites.

Batch generation

from pyfsviz import FreeSurfer

fs = FreeSurfer()
results = fs.gen_batch_reports(
    "reports/",
    skip_failed=True,
    skip_existing=True,
)

Argument	Default	Effect
output_dir	required	Root directory for HTML and images
subjects	all from get_subjects()	Limit to these IDs
template	packaged individual.html	Path to a Jinja2 HTML template
gen_images	True	Build TLRC / aparc / surface images before HTML
skip_failed	True	Continue after a subject error; store the exception in results
skip_existing	False	Skip subjects that already have {output_dir}/{subject}/{subject}.html

If skip_existing is true and the HTML file is already present, that subject is not reprocessed (even if images are missing). Incomplete runs without HTML are still processed.

Set skip_failed=False to abort on the first failure.

What each report contains

For every subject, batch generation:

1. Warns if scripts/recon-all.log does not end with finished without error (check_recon_all). Processing still continues.
2. Builds a Talairach before/after overlay (gen_tlrc_data + gen_tlrc_report) using the inverse talairach.xfm.lta transform and FSL flirt.
3. Renders aparc+aseg screenshot mosaics (gen_aparcaseg_plots).
4. Renders left/right pial, inflated, and white surfaces (gen_surf_plots).
5. Writes HTML with gen_html_report.

Please note that Deep-MI's fsqc is used to generate the aparc+aseg mosaic. This automatically generates the metrics.csv file as well.

Open {output_dir}/{subject}/{subject}.html in a browser. Images are referenced next to the HTML file, so keep that directory together if you copy reports.

Example figures below are from OpenNeuro ds004731 (reconstructions run separately; pyFSViz only builds the HTML report). The script used to generate them is generate_reports.py.

Summary

The Summary card is filled from the subject tree (scripts/, stats/aseg.stats, Talairach transforms) plus fsqc rotation when metrics.csv is present.

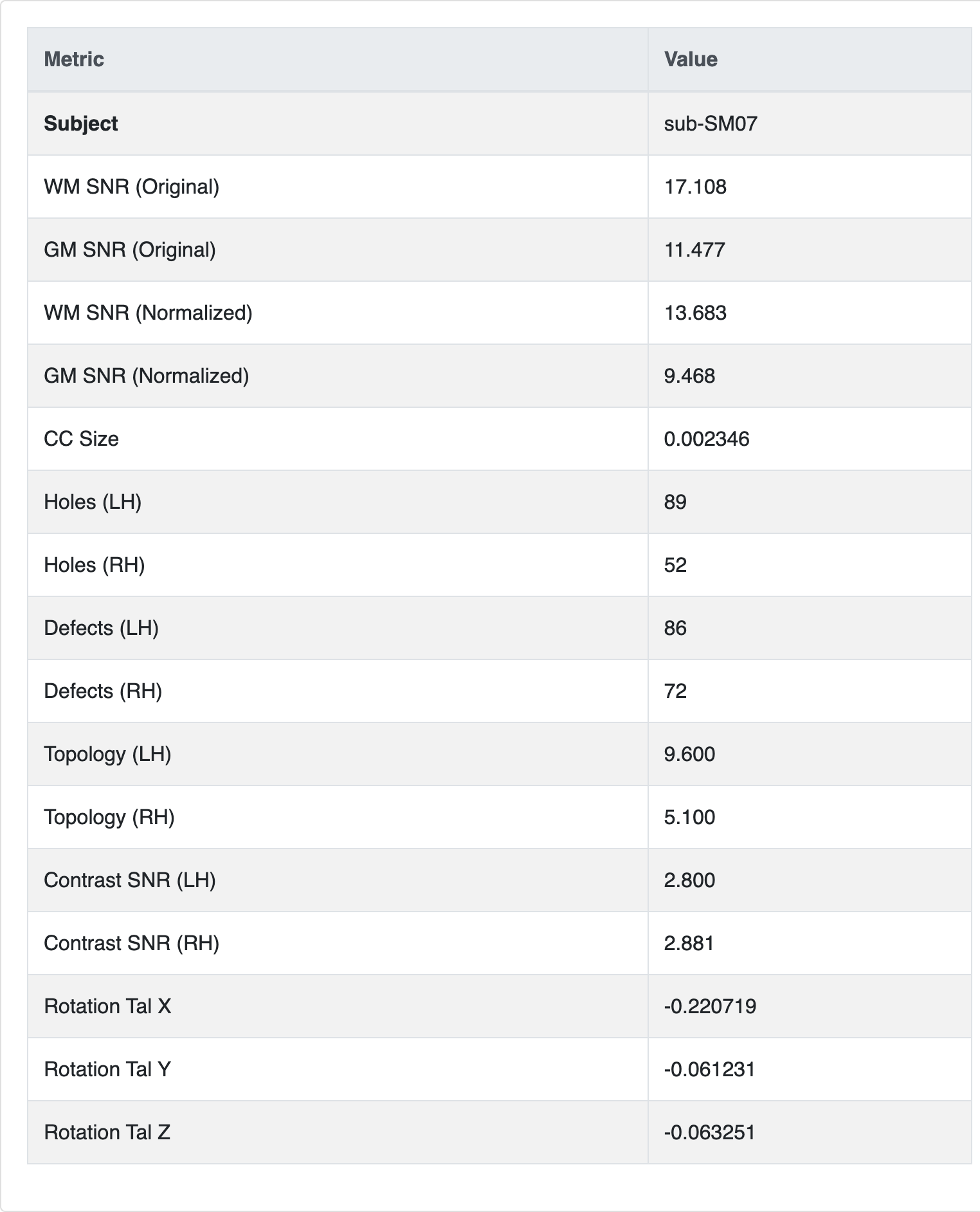

Metrics

The Metrics table is the fsqc row from {output_dir}/{subject}/metrics.csv (written by gen_aparcaseg_plots).

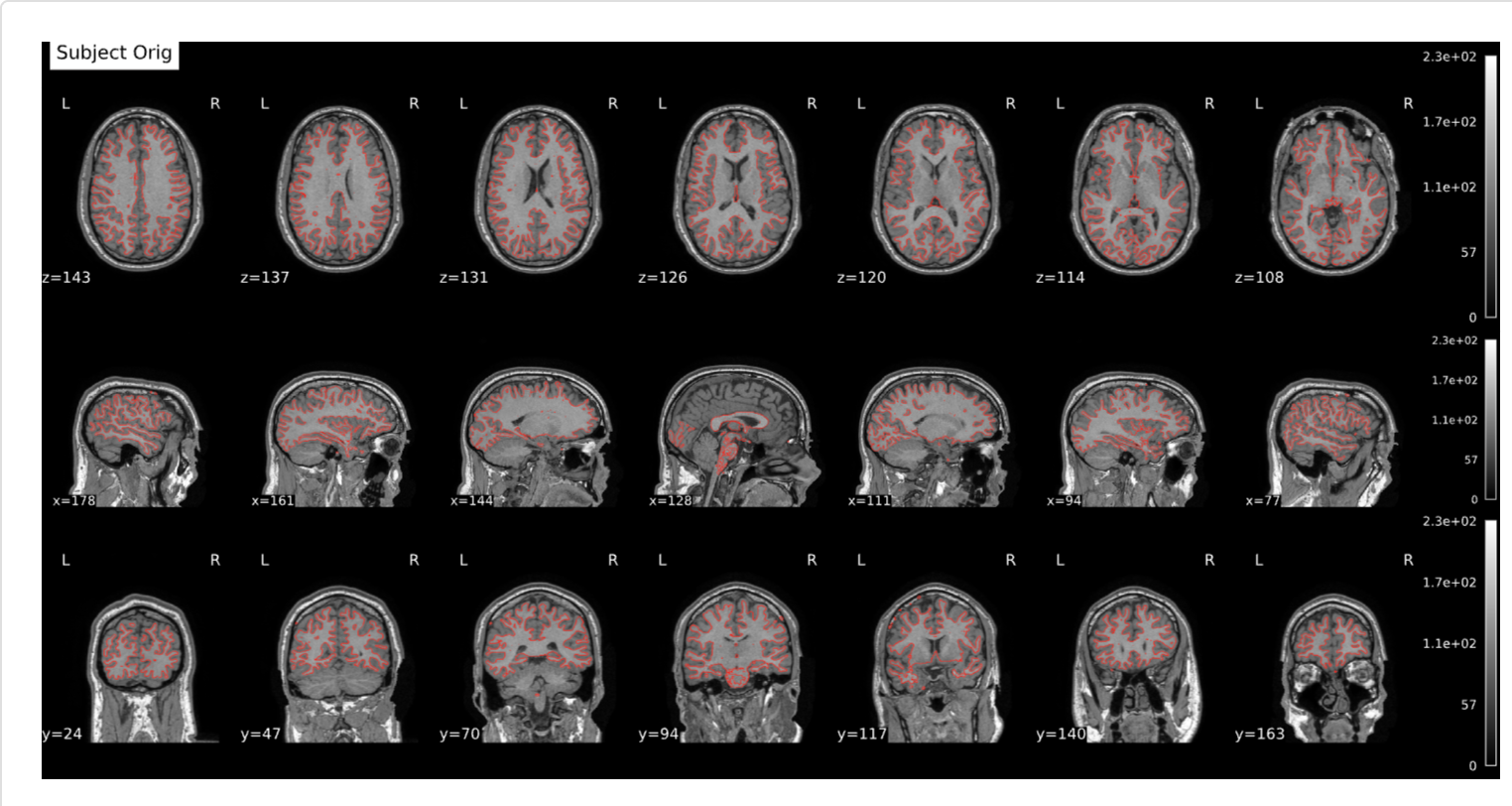

Talairach registration

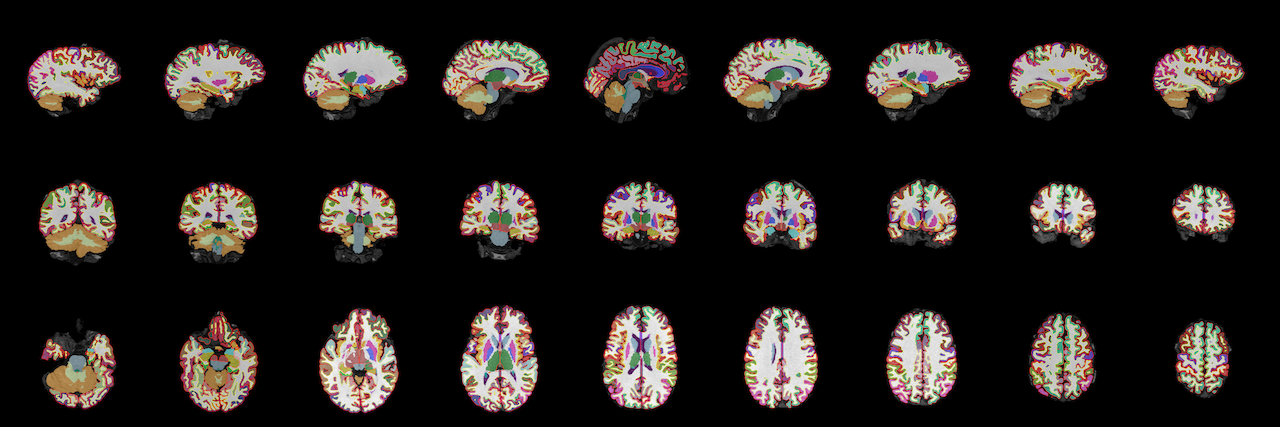

Aparc+aseg

The aparc+aseg mosaic is shown at page width. Click it to inspect slices at higher magnification: drag to pan, scroll to zoom, Esc or Close to return.

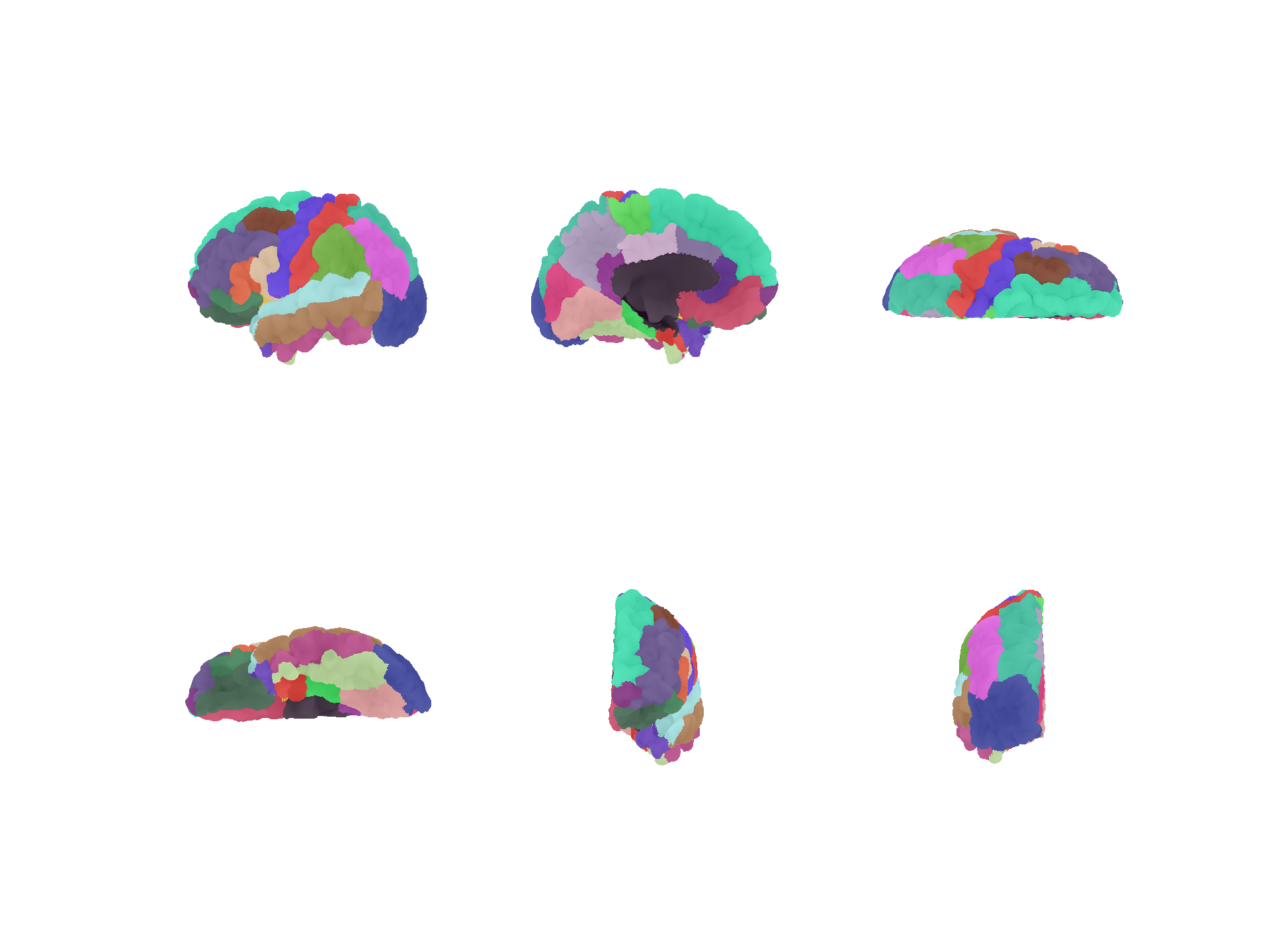

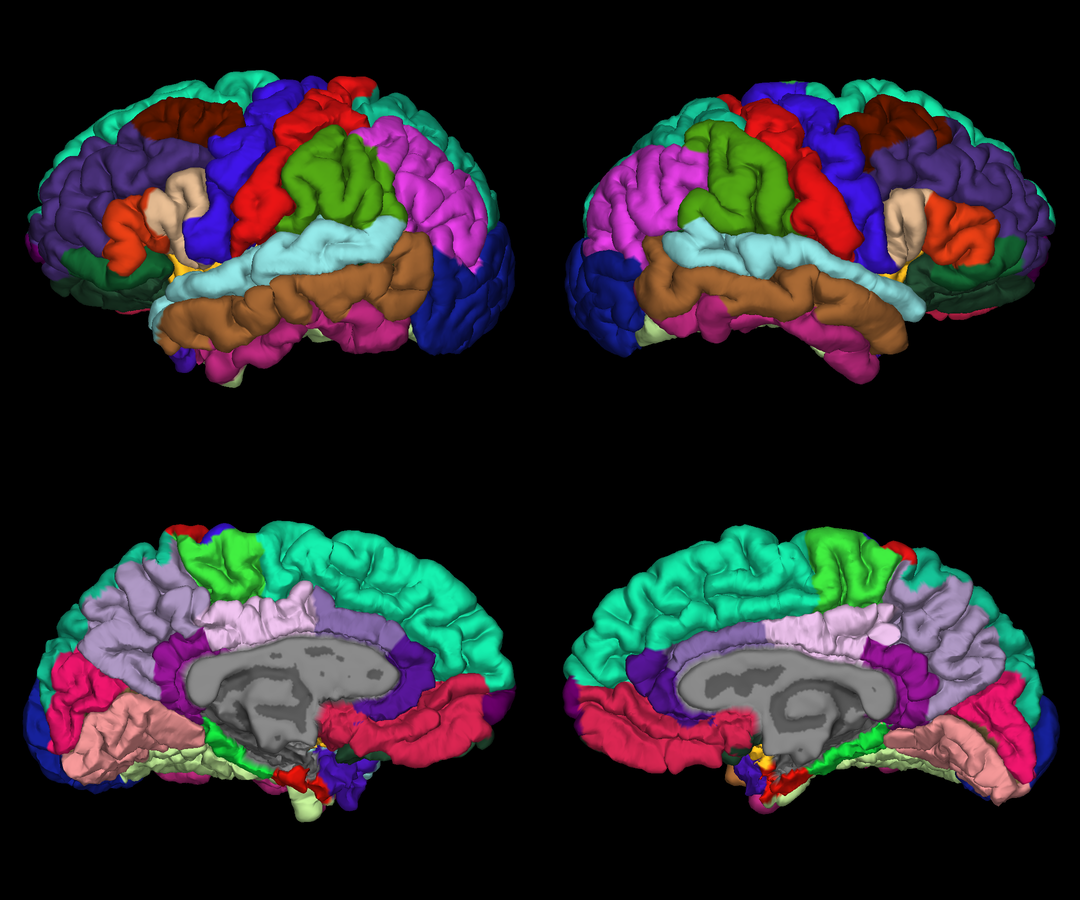

Surfaces

Surface views are colored with the subject's aparc annotation.

To refresh HTML after a pyFSViz update without rerunning screenshots:

fs.gen_batch_reports("reports/", gen_images=False)

Output layout

reports/
  sub-001/
    sub-001.html
    tlrc.svg
    metrics.csv
  sub-002/
    ...

One subject at a time

The gen_* methods can be called directly for a custom pipeline. Pass the image paths into gen_html_report (batch mode does this for you):

subject = "sub-001"
out = "reports/sub-001"

imgs = [
    fs.gen_tlrc_report(subject, out),
    fs.gen_aparcaseg_plots(subject, out),
    *fs.gen_surf_plots(subject, out),
]
fs.gen_html_report(subject, "reports/", img_list=imgs)

gen_html_report writes {output_dir}/{subject}/{subject}.html.

To skip regenerating images in a batch run, use gen_batch_reports(..., gen_images=False) when each subject output directory already contains the PNG/SVG files. That is enough to pick up HTML-only changes such as mosaic zoom; leave skip_existing=False so existing {subject}.html files are rewritten.

Custom templates

Pass template= to gen_batch_reports or gen_html_report with a path to a Jinja2 file. The default template receives timestamp, subject, summary (recon-all status, FreeSurfer version, command, Talairach check, …), tlrc (SVG markup), aseg (image filenames), surf (label, filename pairs), surf_legend (aparc name/color pairs), and metrics (optional fsqc dict). The default template used here is based off the nipreps MRIQC reports.
